Sandvik Coromant

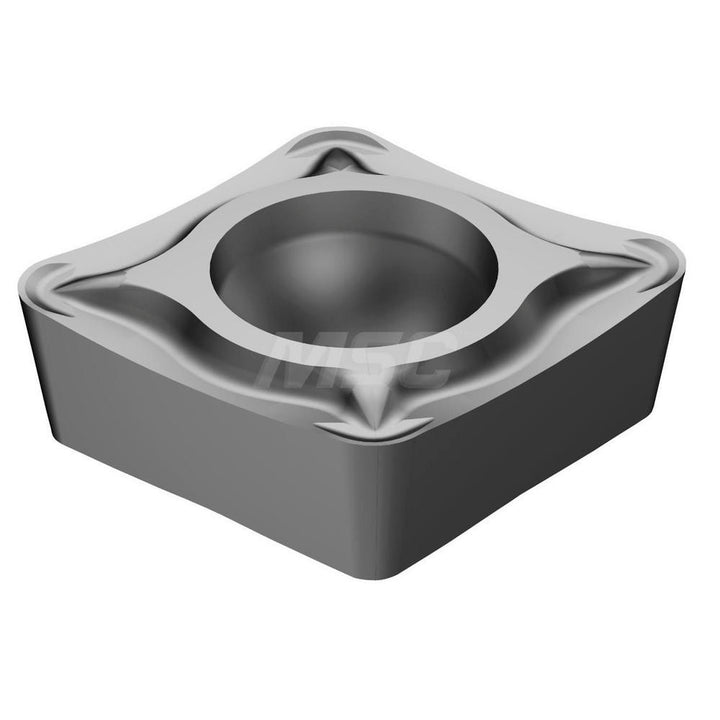

CCMT060204UM5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5723672
MFR# 5723672ISO/ANSI# CCMT060204UM5015Series CoroTurn 107
$13.10List $16.79
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade5015
MaterialCermet
Description
The Sandvik Coromant 5723672 is a CCMT060204UM5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCermet
Insert shapeDiamond
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204UM5015
Length range0.0000 - 0.3000
Manufacturers catalog number5723672
Manufacturer grade5015
Maximum depth of cut0.2382
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeNo
