Sandvik Coromant

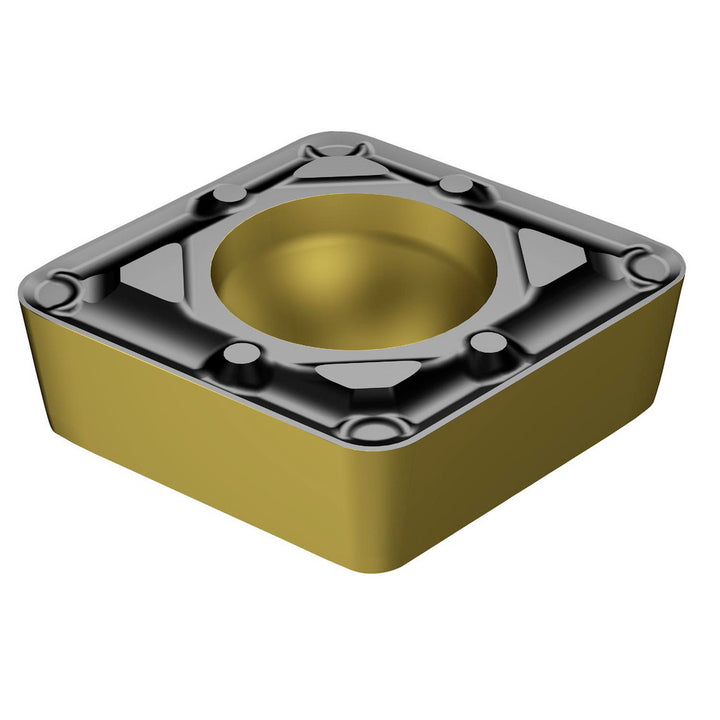

CCMT09T304WF1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5723835
MFR# 5723835ISO/ANSI# CCMT09T304WF1515Series CoroTurn 107
$21.78List $27.45
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723835 is a CCMT09T304WF1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3807
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT09T304WF1515
Length range0.3000 - 0.4000
Manufacturers catalog number5723835
Manufacturer grade1515
Maximum depth of cut0.3650
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
