Sandvik Coromant

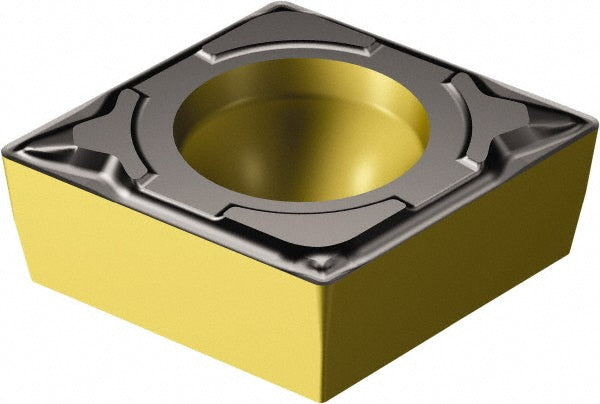

CCMT 06 02 02-PF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5723946
MFR# 5723946ISO/ANSI# CCMT 06 02 02-PF 1515
$15.21List $19.50
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5723946 is a CCMT 06 02 02-PF 1515 carbide indexable insert, grade 1515, TiCN coated.
Specifications
Chip breakerT
Clearance codeC
Coating finishTiCN
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert holding methodScrew
Insert length0.2460
Insert materialCarbide
Insert shapeDiamond
Insert size code21.5
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 02-PF 1515
Length range0.0000 - 0.3000
Manufacturer grade1515
Relief angle7
Tolerance codeM
