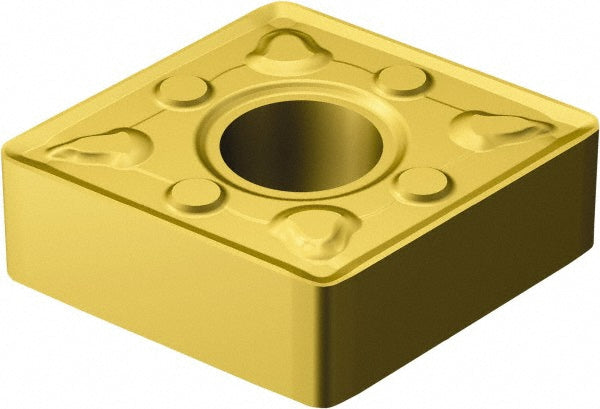

CNMG 12 04 08-WM 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5724026
MFR# 5724026ISO/ANSI# CNMG 12 04 08-WM 1525
$18.67List $23.54
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724026 is a CNMG 12 04 08-WM 1525 carbide indexable insert, grade 1525, TiCN coated.
Specifications
Chip breakerG
Clearance codeN
Coating finishTiCN
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-WM 1525
Length range0.4000 - 0.5000
Manufacturer grade1525
Relief angle0
Tolerance codeM
