Sandvik Coromant

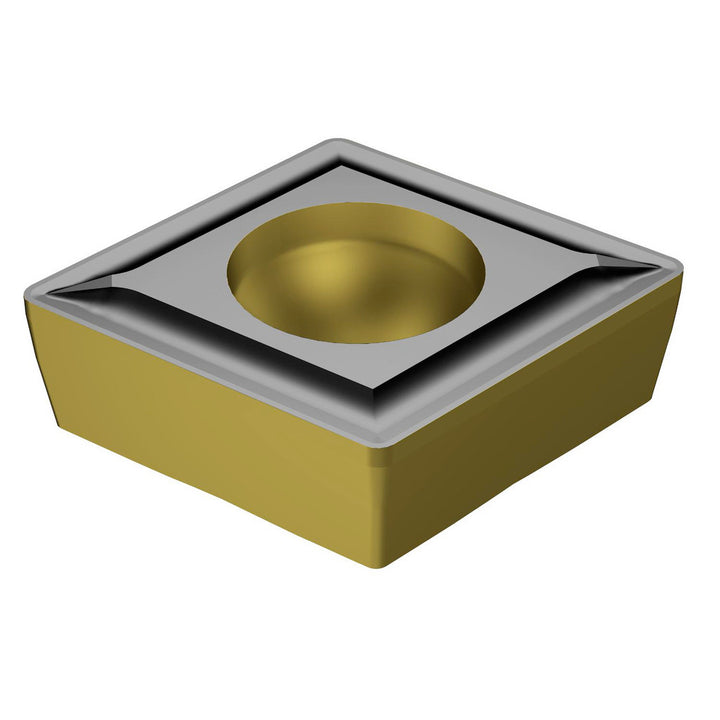

CCMT060204UF1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5724038
MFR# 5724038ISO/ANSI# CCMT060204Series CoroTurn 107
$14.44List $18.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724038 is a CCMT060204UF1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCCMT21.51
Ansi size code21.51
Chip breakerUF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.51
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060204UF1515
Iso insert codeCCMT060204
Iso size code060204
Length range0.0000 - 0.3000
Manufacturers catalog number5724038
Manufacturer grade1515
Maximum depth of cut0.2382
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
Tolerance codeM
Wiper edgeNo
