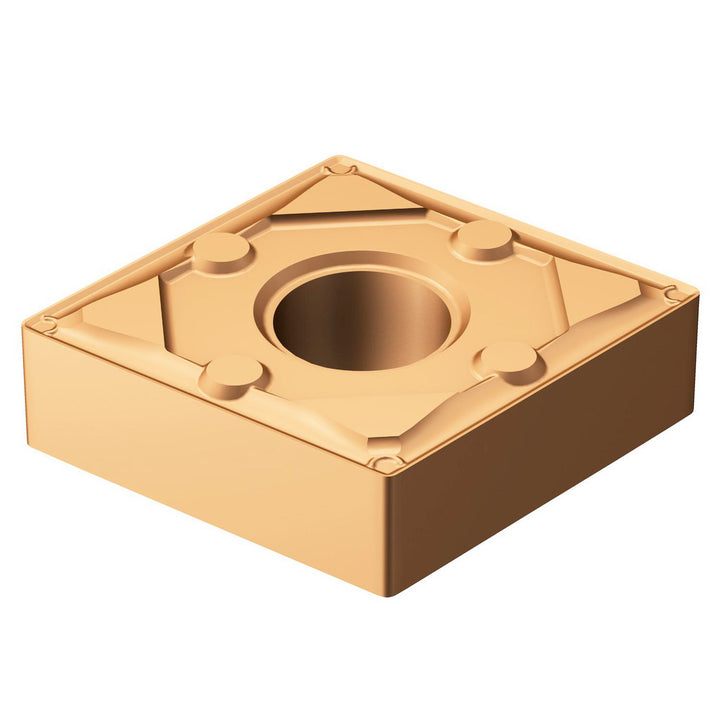

CNMG 12 04 04-WF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5724064
MFR# 5724064ISO/ANSI# CNMG 12 04 04-WF 1125Series T-Max P
$20.78List $26.65
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724064 is a CNMG 12 04 04-WF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4920
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 04-WF 1125
Length range0.4000 - 0.5000
Manufacturer grade1125
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
