Sandvik Coromant

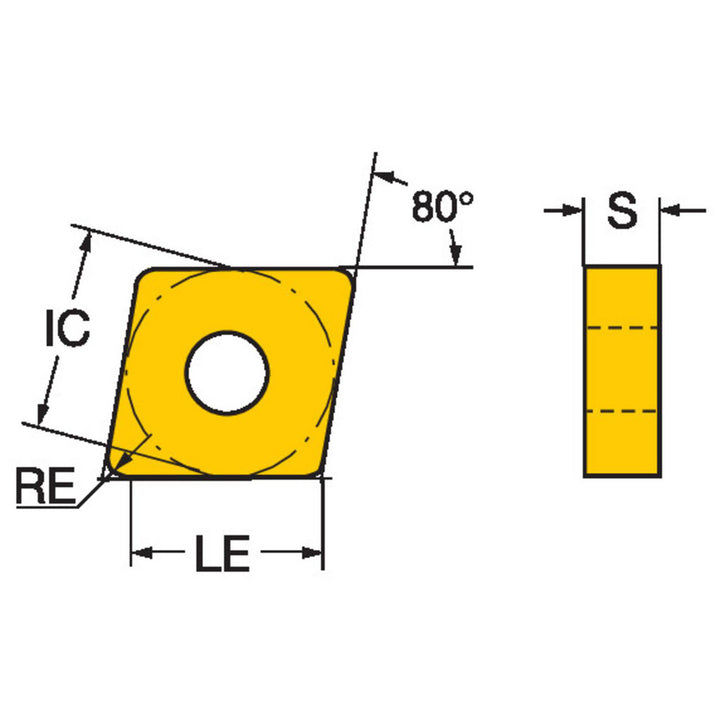

CNMG 12 04 04-WF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5724067
MFR# 5724067ISO/ANSI# CNMG 12 04 04-WF 1525Series T-Max P
$20.42List $26.19
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724067 is a CNMG 12 04 04-WF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4920
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 04-WF 1525
Length range0.4000 - 0.5000
Manufacturer grade1525
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeYes
