Sandvik Coromant

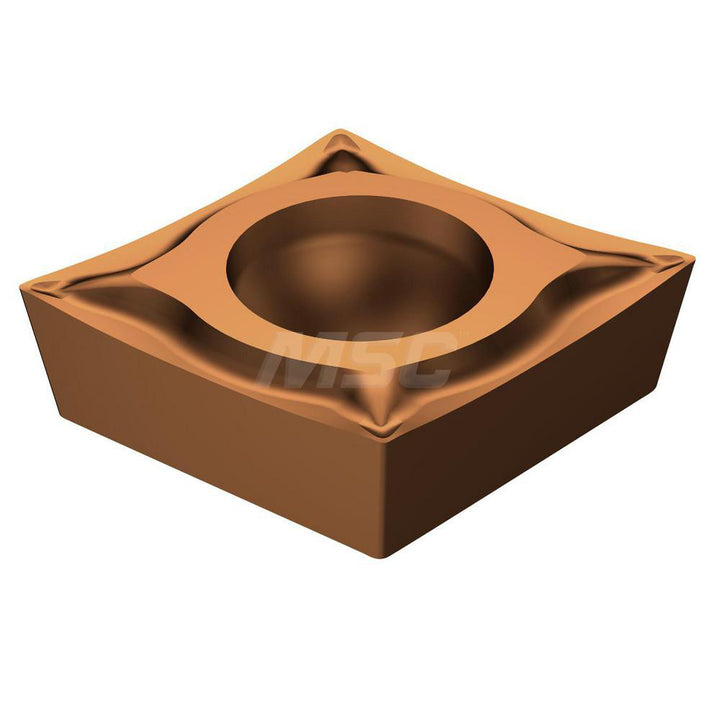

CCGT 09 T3 01-UM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5724077
MFR# 5724077ISO/ANSI# CCGT 09 T3 01-UM 1115Series CoroTurn 107
$35.49List $45.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724077 is a CCGT 09 T3 01-UM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0039
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3769
Insert materialCarbide
Insert shapeDiamond
Insert size code32.503
Insert styleCCGT
Insert thickness in5/32
Iso codeCCGT 09 T3 01-UM 1115
Length range0.3000 - 0.4000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
