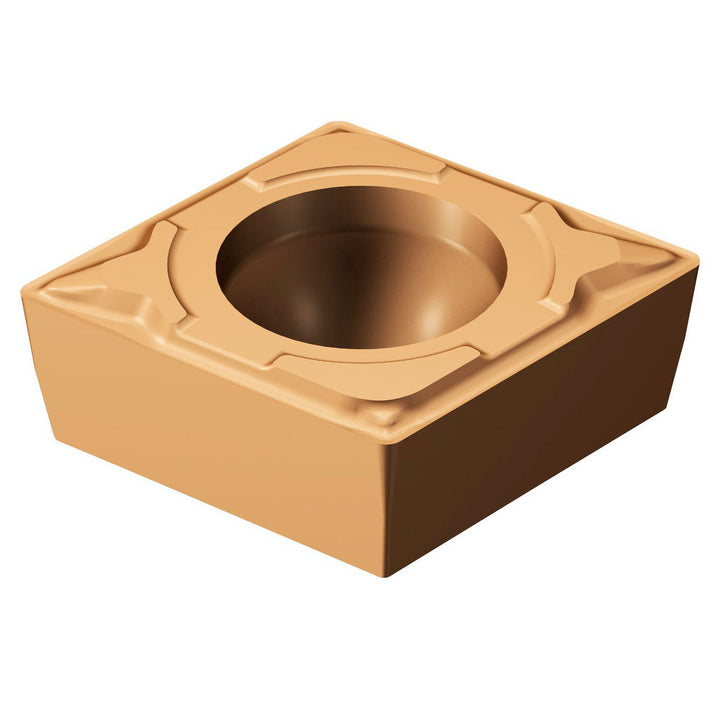

CCMT 09 T3 02-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5724092

Sandvik Coromant

CCMT 09 T3 02-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5724092

MFR# 5724092ISO/ANSI# CCMT09T301Series CoroTurn 107

$17.58List $22.55 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade1125
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5724092 is a CCMT 09 T3 02-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.

Specifications

Ansi insert codeCCMT32.50
Ansi size code32.50
Chip breakerMF
Chip breaker operationFinishing
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - Moderate Wear-Resistance and Toughness
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3729
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.50
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 02-MF 1125
Iso insert codeCCMT09T301
Iso size code09T301
Length range0.3000 - 0.4000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Side clearancePositive
Tolerance codeM
Wiper edgeNo
