Sandvik Coromant

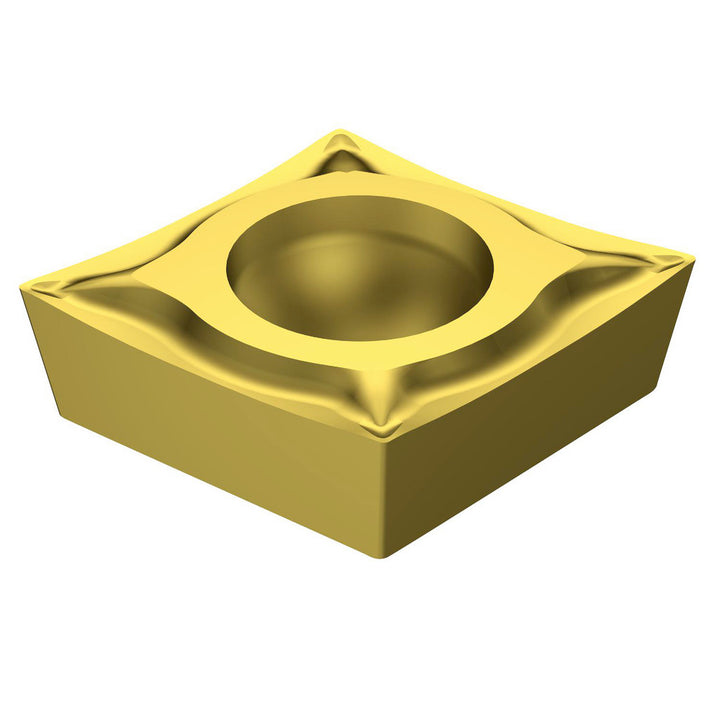

CCGT 06 02 04-UM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5724112
MFR# 5724112ISO/ANSI# CCGT 06 02 04-UM 2035Series CoroTurn 107
$25.09List $32.18
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724112 is a CCGT 06 02 04-UM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCCGT
Insert thickness in3/32
Iso codeCCGT 06 02 04-UM 2035
Length range0.0000 - 0.3000
Manufacturer grade2035
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeG
Wiper edgeNo
