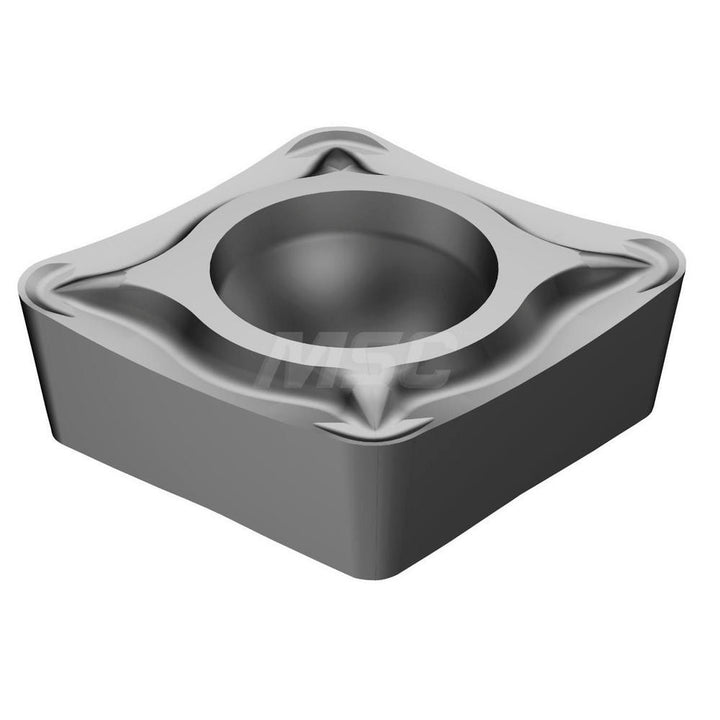

CCMT 09 T3 04-UM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5724139

Sandvik Coromant

CCMT 09 T3 04-UM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5724139

MFR# 5724139ISO/ANSI# CCMT 09 T3 04-UM H13ASeries CoroTurn 107

$14.87List $18.74 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
GradeH13A
MaterialCarbide

Description

The Sandvik Coromant 5724139 is a CCMT 09 T3 04-UM H13A carbide indexable insert, grade H13A. Suited for steel.

Specifications

Chip breakerUM
Clearance codeC
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3650
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 04-UM H13A
Length range0.3000 - 0.4000
Manufacturer gradeH13A
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
