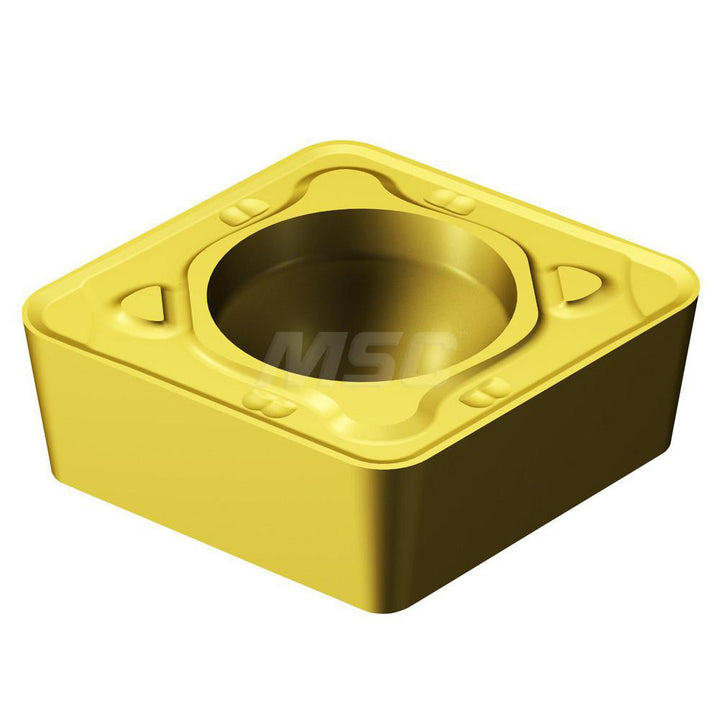

CCMT 06 02 08-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5724159

Sandvik Coromant

CCMT 06 02 08-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5724159

MFR# 5724159ISO/ANSI# CCMT060208Series CoroTurn 107

$13.47List $17.28 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade2035
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5724159 is a CCMT 06 02 08-MR 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCMT21.52
Ansi size code21.52
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2224
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT 06 02 08-MR 2035
Iso insert codeCCMT060208
Iso size code060208
Length range0.0000 - 0.3000
Manufacturer grade2035
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Side clearancePositive
Tolerance codeM
Wiper edgeNo
