Sandvik Coromant

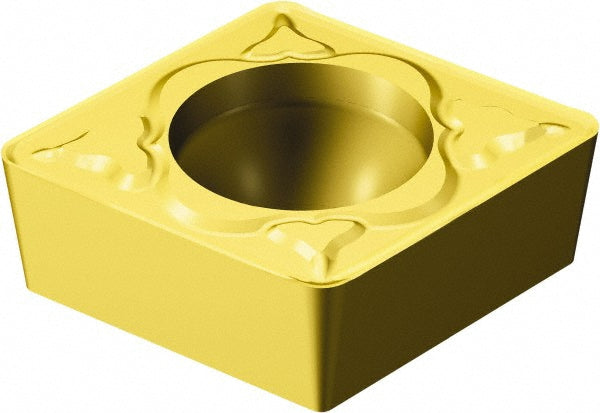

CCMT 09 T3 08-KM 3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5724242
MFR# 5724242ISO/ANSI# CCMT09T308
$17.78List $22.41
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeC - Diamond (Rhombic) 80-Deg
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724242 is a CCMT 09 T3 08-KM 3005 carbide indexable insert, grade 3005, TiCN coated.
Specifications
Ansi insert codeCCMT32.52
Ansi size code32.52
Chip breakerKM
Chip breaker operationRoughing; Medium Machining
Clearance codeC
Coating finishTiCN
Corner radius in1/32
Grade characteristicsCast Iron (K) - High Wear-Resistance
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert holding methodScrew
Insert length0.3493
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 08-KM 3005
Iso insert codeCCMT09T308
Iso size code09T308
Length range0.3000 - 0.4000
Manufacturer grade3005
Relief angle7
Side clearancePositive
Tolerance codeM
