Sandvik Coromant

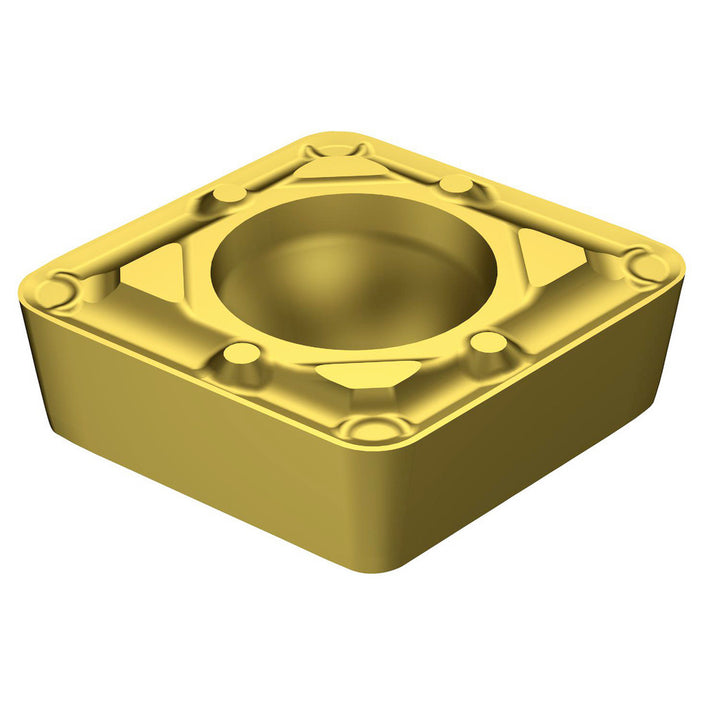

CCMT060208WF3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5724280
MFR# 5724280ISO/ANSI# CCMT060208WF3005Series CoroTurn 107
$17.48List $22.03
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724280 is a CCMT060208WF3005 carbide indexable insert, grade 3005, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiCN
Coating processMTCVD
Corner radius in1/32
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2539
Insert materialCarbide
Insert shapeDiamond
Insert size code21.52
Insert styleCCMT
Insert thickness in3/32
Iso codeCCMT060208WF3005
Length range0.0000 - 0.3000
Manufacturers catalog number5724280
Manufacturer grade3005
Maximum depth of cut0.2224
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
