Sandvik Coromant

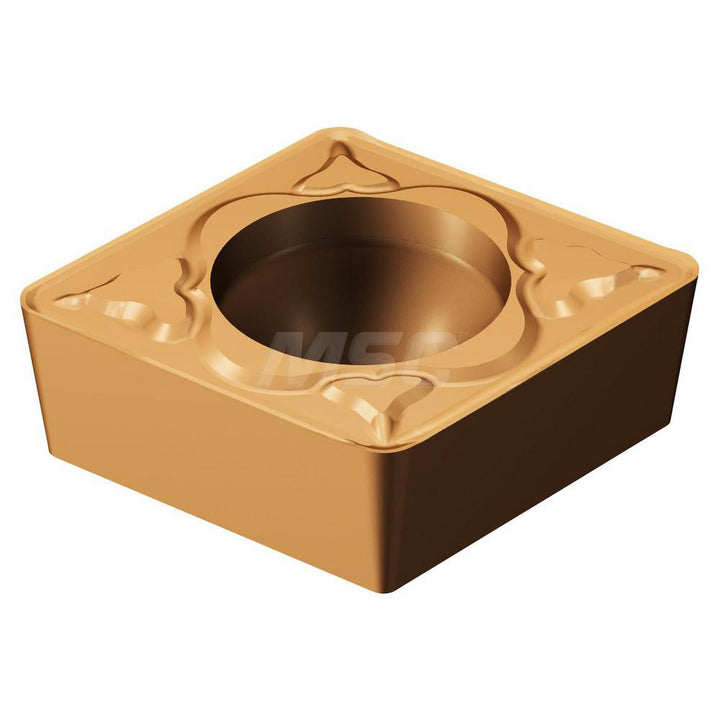

CCMT 09 T3 08-MM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5724284
MFR# 5724284ISO/ANSI# CCMT 09 T3 08-MM 1115Series CoroTurn 107
$15.51List $19.90
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1115
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724284 is a CCMT 09 T3 08-MM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3493
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 08-MM 1115
Length range0.3000 - 0.4000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
