Sandvik Coromant

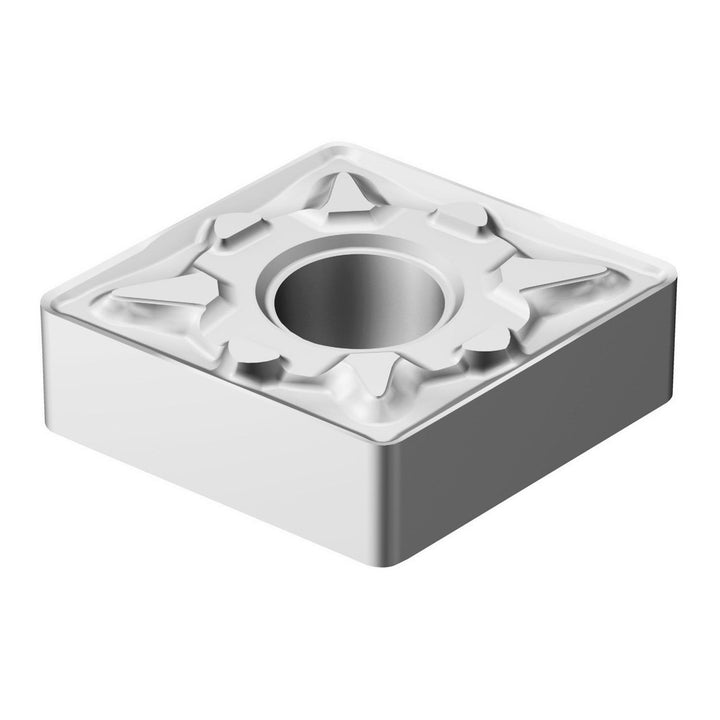

CNMG 12 04 08-MM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5724437
MFR# 5724437ISO/ANSI# CNMG 12 04 08-MM H13ASeries T-Max P
$14.10List $18.09
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5724437 is a CNMG 12 04 08-MM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerMM
Clearance codeN
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-MM H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
