Sandvik Coromant

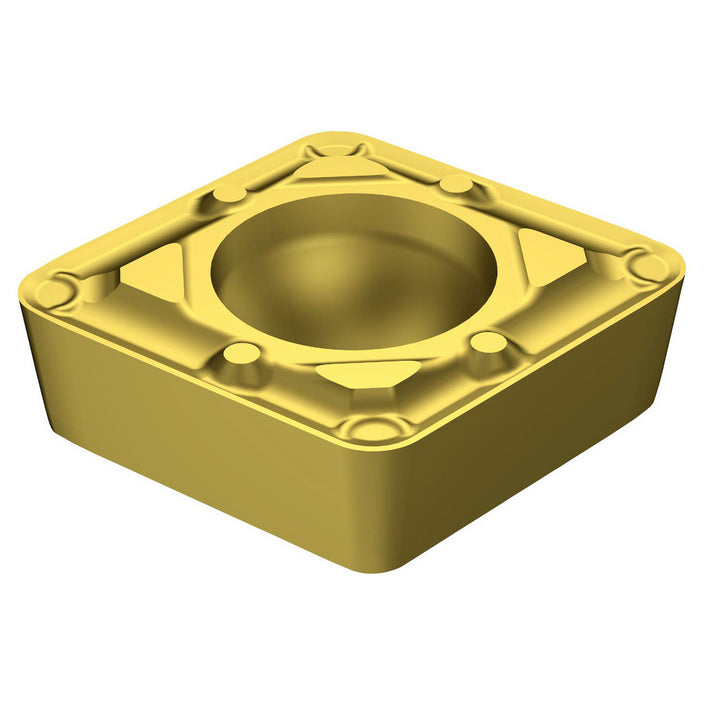

CCMT 09 T3 08-WF 3005 Carbide Insert, Grade 3005, TiCN - Sandvik Coromant 5724520
MFR# 5724520ISO/ANSI# CCMT 09 T3 08-WF 3005Series CoroTurn 107
$17.51List $22.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade3005
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724520 is a CCMT 09 T3 08-WF 3005 carbide indexable insert, grade 3005, TiCN coated. Suited for steel.
Specifications
Chip breakerWF
Clearance codeC
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.3493
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCMT
Insert thickness in5/32
Iso codeCCMT 09 T3 08-WF 3005
Length range0.3000 - 0.4000
Manufacturer grade3005
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeM
Wiper edgeYes
