Sandvik Coromant
CNGA 12 04 12T02520 6190 Ceramic Insert, Grade 6190 - Sandvik Coromant 5724557
MFR# 5724557ISO/ANSI# CNGA 12 04 12T02520 6190
$32.65List $41.15
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 10 — minimum order 10
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade6190
MaterialCeramic
Description

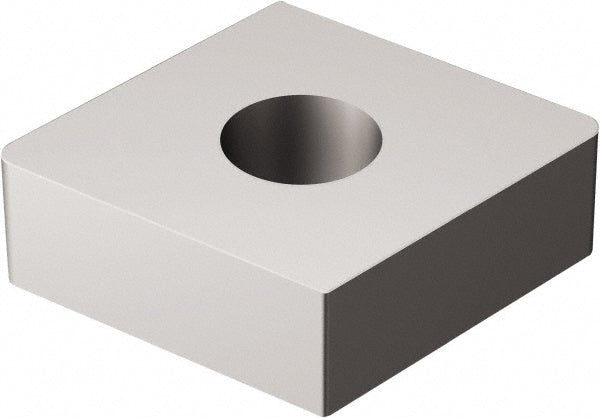

The Sandvik Coromant 5724557 is a CNGA 12 04 12T02520 6190 ceramic indexable insert, grade 6190.
Specifications
Chip breakerA
Clearance codeN
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.4605
Insert materialCeramic
Insert shapeDiamond
Insert size code433
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 12 04 12T02520 6190
Length range0.4000 - 0.5000
Manufacturer grade6190
Relief angle0
Tolerance codeG
