Sandvik Coromant

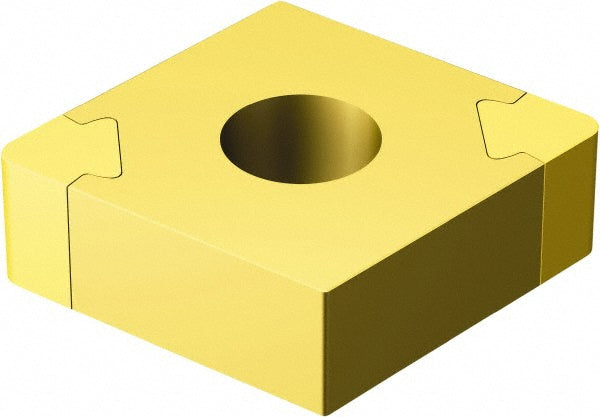

CNGA120412S01030A 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5724570
MFR# 5724570ISO/ANSI# CNGA120412S01030A 7015
$175.15List $224.64
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade7015
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5724570 is a CNGA120412S01030A 7015 carbide indexable insert, grade 7015, TiN coated.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.1102
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120412S01030A 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Relief angle0
Tolerance codeG
