Sandvik Coromant

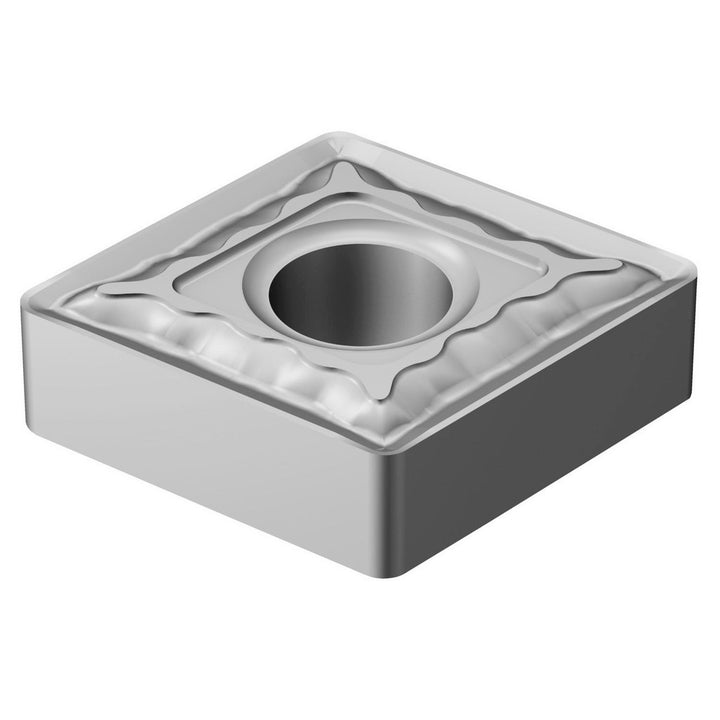

CNMG 12 04 12-QM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5724649
MFR# 5724649ISO/ANSI# CNMG 12 04 12-QM H13ASeries T-Max P
$13.10List $16.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5724649 is a CNMG 12 04 12-QM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4605
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 12-QM H13A
Length range0.4000 - 0.5000
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
