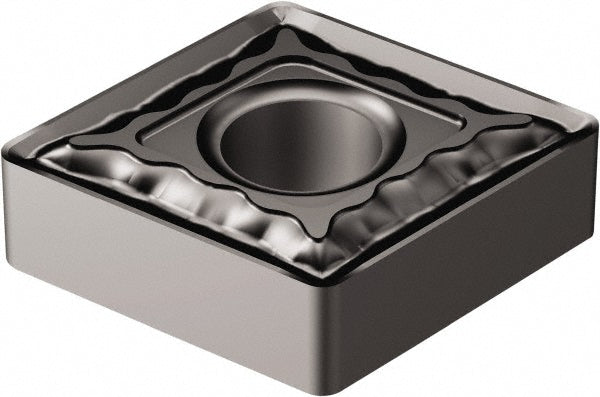

CNMG 12 04 12-QM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5724655
MFR# 5724655ISO/ANSI# CNMG 12 04 12-QM 1105Series T-Max P
$18.13List $23.25
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724655 is a CNMG 12 04 12-QM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4605
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 12-QM 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
