Sandvik Coromant

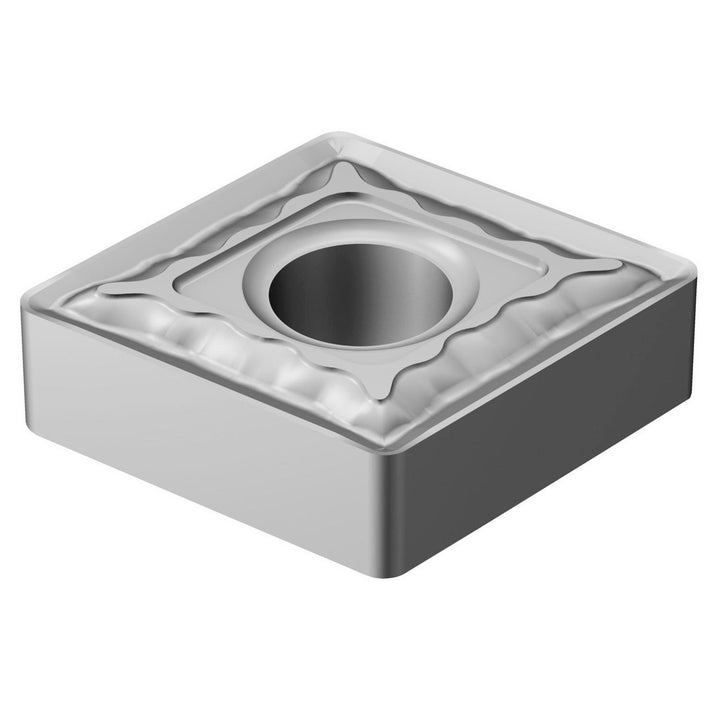

CNMG120416QMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5724720
MFR# 5724720ISO/ANSI# CNMG120416QMH13ASeries T-Max P
$14.15List $18.14
Save 21%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5724720 is a CNMG120416QMH13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in1/16
Hole diameter0.2032
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5079
Insert materialCarbide
Insert shapeDiamond
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG120416QMH13A
Length range0.5000 - 0.6000
Manufacturers catalog number5724720
Manufacturer gradeH13A
Maximum depth of cut0.4449
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
