Sandvik Coromant

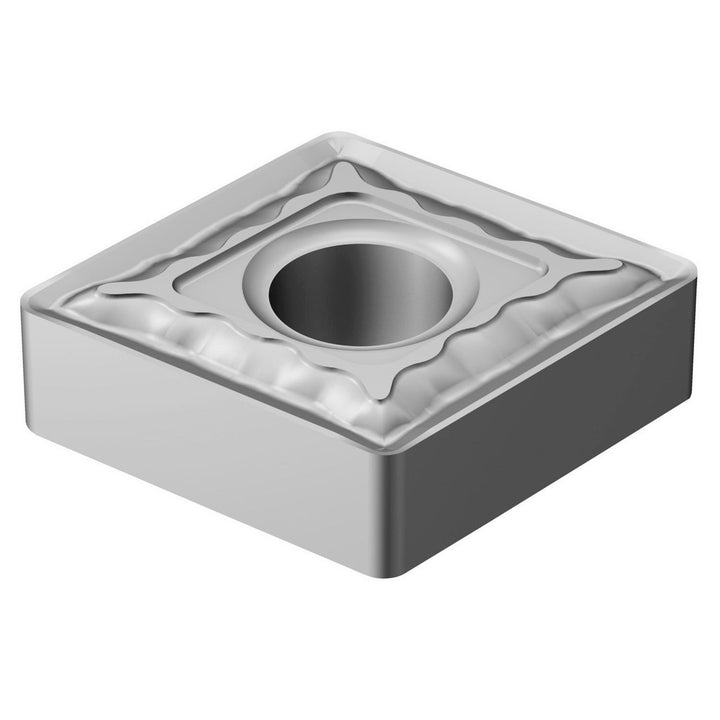

CNMG160608QMH13A Carbide Insert, Grade H13A - Sandvik Coromant 5724812
MFR# 5724812ISO/ANSI# CNMG160608QMH13ASeries T-Max P
$22.44List $28.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5724812 is a CNMG160608QMH13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in1/32
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160608QMH13A
Length range0.6000 - 0.6500
Manufacturers catalog number5724812
Manufacturer gradeH13A
Maximum depth of cut0.6032
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
