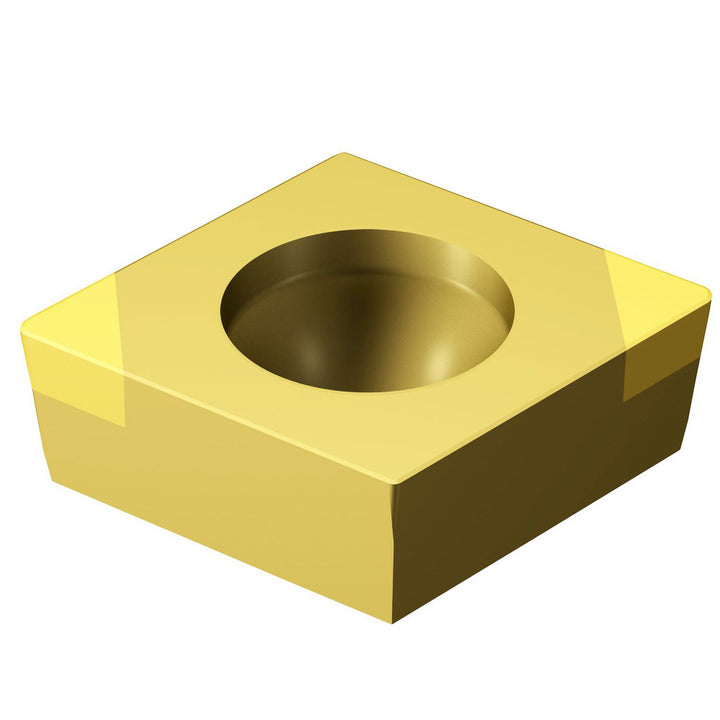

CCGW09T304S01020F 7015 Cubic Boron Nitride (CBN) Insert, Grade 7015, TiN - Sandvik Coromant 5724854

Sandvik Coromant

CCGW09T304S01020F 7015 Cubic Boron Nitride (CBN) Insert, Grade 7015, TiN - Sandvik Coromant 5724854

MFR# 5724854ISO/ANSI# CCGW09T304S01020F 7015Series CoroTurn 107

$85.06List $109.08 Save 22%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeDiamond
Grade7015
MaterialCubic Boron Nitride (CBN)
CoatingTiN

Description

The Sandvik Coromant 5724854 is a CCGW09T304S01020F 7015 cubic boron nitride (cbn) indexable insert, grade 7015, TiN coated. Suited for hard material.

Specifications

Chip breakerW
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0709
Insert materialCubic Boron Nitride (CBN)
Insert shapeDiamond
Insert size code32.51
Insert styleCCGW
Insert thickness in5/32
Iso codeCCGW09T304S01020F 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Number of cutting edges2
Primary workpiece materialHard Material
Relief angle7
Tolerance codeG
Wiper edgeNo
