Sandvik Coromant

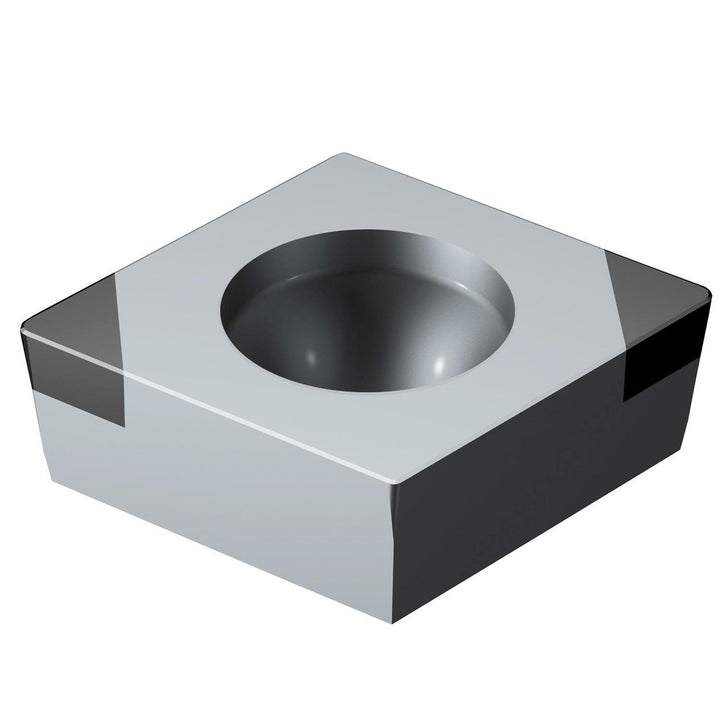

CCGW09T308S01020F 7025 Carbide Insert, Grade 7025 - Sandvik Coromant 5724862
MFR# 5724862ISO/ANSI# CCGW09T308S01020F 7025Series CoroTurn 107
$85.06List $109.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade7025
MaterialCarbide
Description
The Sandvik Coromant 5724862 is a CCGW09T308S01020F 7025 carbide indexable insert, grade 7025. Suited for hard material.
Specifications
Chip breakerW
Clearance codeC
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0787
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCGW
Insert thickness in5/32
Iso codeCCGW09T308S01020F 7025
Length range0.0000 - 0.3000
Manufacturer grade7025
Number of cutting edges2
Primary workpiece materialHard Material
Relief angle7
Tolerance codeG
Wiper edgeNo
