Sandvik Coromant

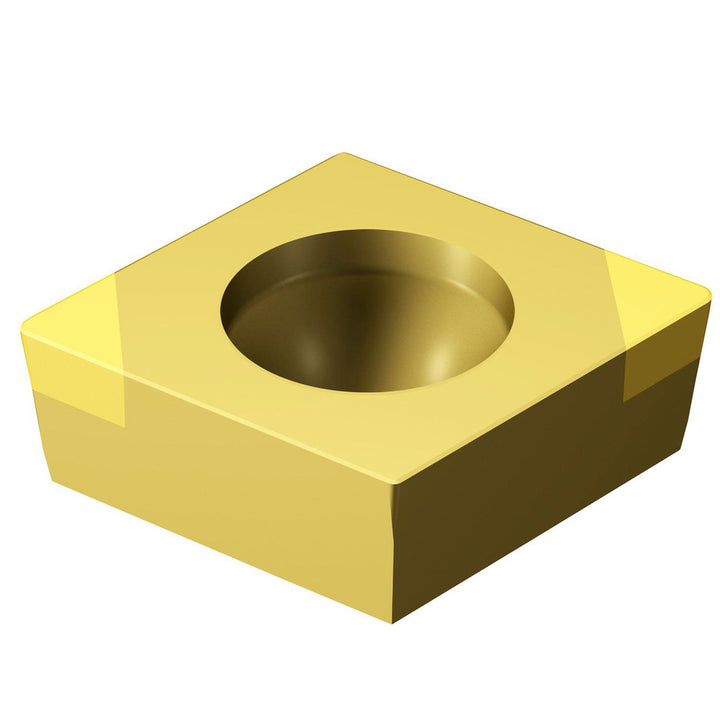

CCGW09T308T01020FWH 7015 Carbide Insert, Grade 7015, TiN - Sandvik Coromant 5724866
MFR# 5724866ISO/ANSI# CCGW09T308T01020FWH 7015Series CoroTurn 107
$97.68List $125.28
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade7015
MaterialCarbide
CoatingTiN
Description
The Sandvik Coromant 5724866 is a CCGW09T308T01020FWH 7015 carbide indexable insert, grade 7015, TiN coated. Suited for hard material.
Specifications
Chip breakerWH
Clearance codeC
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.1732
Included angle80
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.0787
Insert materialCarbide
Insert shapeDiamond
Insert size code32.52
Insert styleCCGW
Insert thickness in5/32
Iso codeCCGW09T308T01020FWH 7015
Length range0.0000 - 0.3000
Manufacturer grade7015
Number of cutting edges2
Primary workpiece materialHard Material
Relief angle7
Tolerance codeG
Wiper edgeYes
