Sandvik Coromant

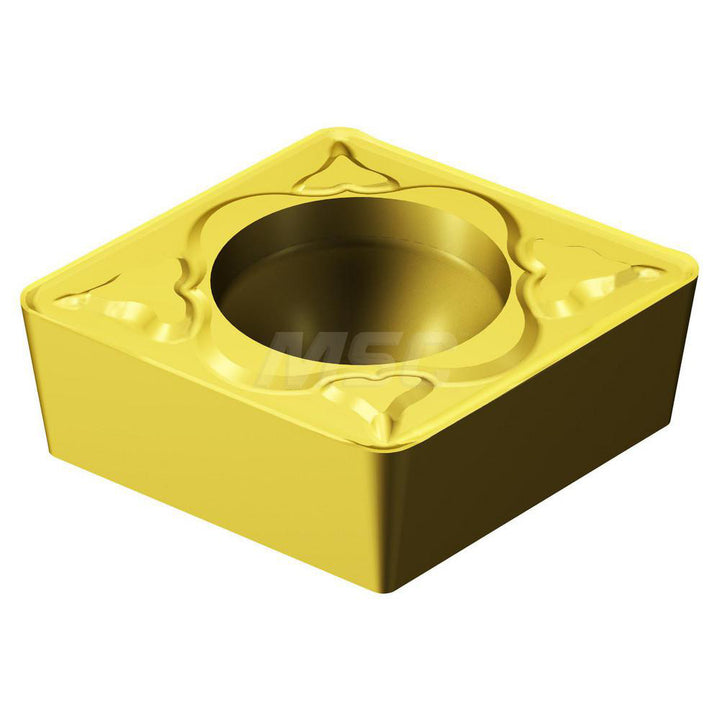

CCMT 12 04 04-MM 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5724954
MFR# 5724954ISO/ANSI# CCMT 12 04 04-MM 2035Series CoroTurn 107
$21.90List $28.08
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5724954 is a CCMT 12 04 04-MM 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.4920
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 04-MM 2035
Length range0.4000 - 0.5000
Manufacturer grade2035
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Tolerance codeM
Wiper edgeNo
