Sandvik Coromant

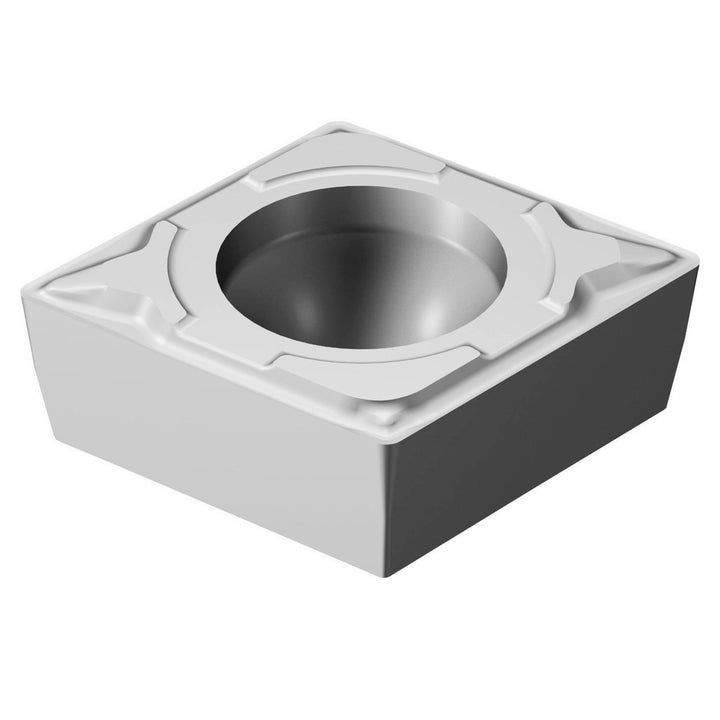

CCMT120404PF5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5724966
MFR# 5724966ISO/ANSI# CCMT120404Series CoroTurn 107
$21.30List $27.32
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade5015
MaterialCermet
Description
The Sandvik Coromant 5724966 is a CCMT120404PF5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
Ansi insert codeCCMT431
Ansi size code431
Chip breakerPF
Chip breaker operationFinishing
Clearance codeC
Corner radius in1/64
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Hardened Materials (H) - High Wear-Resistance
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5079
Insert materialCermet
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code431
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120404PF5015
Iso insert codeCCMT120404
Iso size code120404
Length range0.5000 - 0.6000
Manufacturers catalog number5724966
Manufacturer grade5015
Maximum depth of cut0.4921
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Side clearancePositive
Tolerance codeM
Wiper edgeNo
