Sandvik Coromant

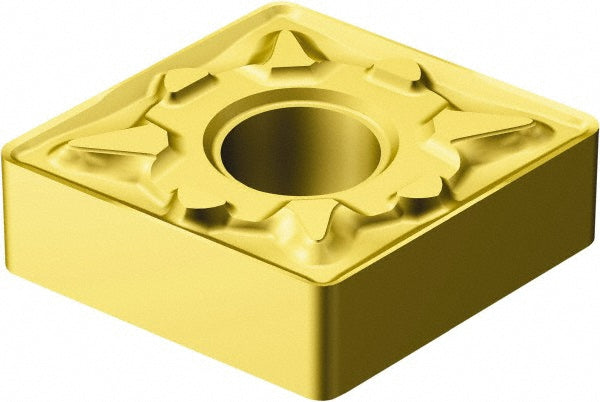

CNMG 12 04 12-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5724987
MFR# 5724987ISO/ANSI# CNMG 12 04 12-MM 2025Series T-Max P
$17.31List $22.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724987 is a CNMG 12 04 12-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in3/64
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4605
Insert materialCarbide
Insert shapeDiamond
Insert size code433
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 12-MM 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
