Sandvik Coromant

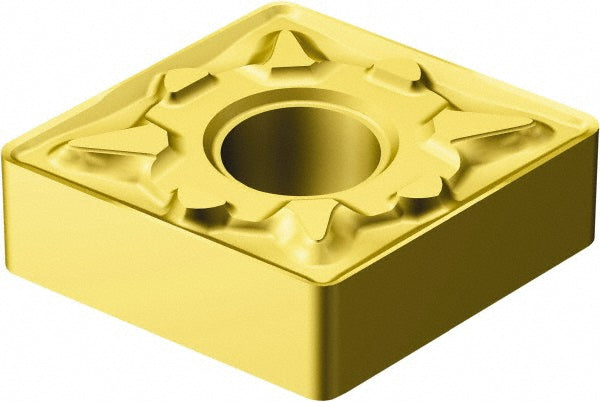

CNMG 12 04 16-MM 2025 Carbide Insert, Grade 2025, TiCN - Sandvik Coromant 5724989
MFR# 5724989ISO/ANSI# CNMG 12 04 16-MM 2025Series T-Max P
$16.88List $21.28
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade2025
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5724989 is a CNMG 12 04 16-MM 2025 carbide indexable insert, grade 2025, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerMM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/16
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4447
Insert materialCarbide
Insert shapeDiamond
Insert size code434
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 16-MM 2025
Length range0.4000 - 0.5000
Manufacturer grade2025
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
