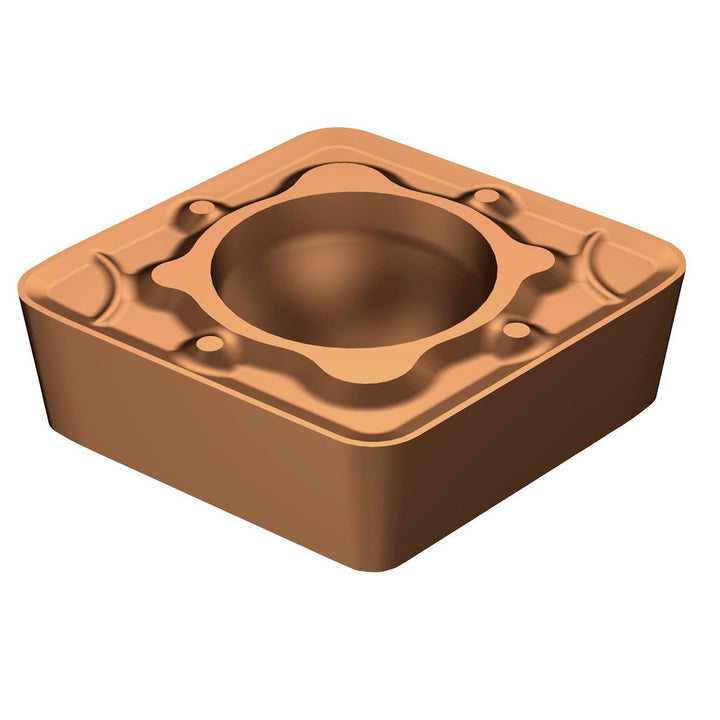

CCMT 12 04 08-WM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5725044

Sandvik Coromant

CCMT 12 04 08-WM 1115 Carbide Insert, Grade 1115, TiAlN - Sandvik Coromant 5725044

MFR# 5725044ISO/ANSI# CCMT120408Series CoroTurn 107

$32.82List $41.36 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
Grade1115
MaterialCarbide
CoatingTiAlN

Description

The Sandvik Coromant 5725044 is a CCMT 12 04 08-WM 1115 carbide indexable insert, grade 1115, TiAlN coated. Suited for stainless steel.

Specifications

Ansi insert codeCCMT432
Ansi size code432
Chip breakerWM
Chip breaker operationWiper - Medium Machining
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Grade characteristicsStainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Special, Super Alloys (S) - High Wear-Resistance to Moderate Wear-Resistance and Toughness
Hole diameter0.2165
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.4762
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT 12 04 08-WM 1115
Iso insert codeCCMT120408
Iso size code120408
Length range0.4000 - 0.5000
Manufacturer grade1115
Number of cutting edges2
Primary workpiece materialStainless Steel
Relief angle7
Secondary workpiece materialSuperalloy; Titanium
Side clearancePositive
Tolerance codeM
Wiper edgeYes
