Sandvik Coromant

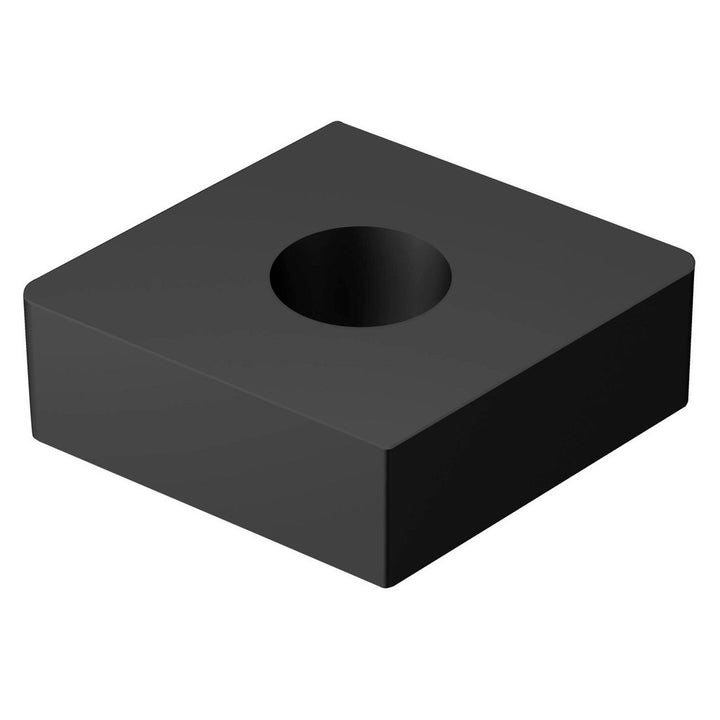

CNGA 12 04 08T01020 650 Ceramic Insert, Grade 650, TiN - Sandvik Coromant 5725078
MFR# 5725078ISO/ANSI# CNGA 12 04 08T01020 650Series T-Max P
$16.54List $21.22
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade650
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5725078 is a CNGA 12 04 08T01020 650 ceramic indexable insert, grade 650, TiN coated. Suited for cast iron.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCeramic
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 12 04 08T01020 650
Length range0.4000 - 0.5000
Manufacturer grade650
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeG
Wiper edgeNo
