Sandvik Coromant

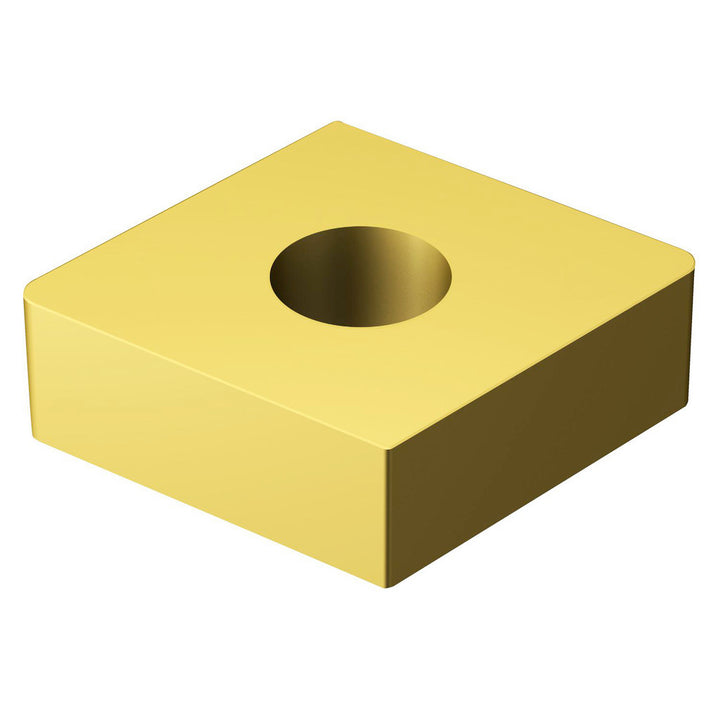

CNGA 12 04 08T01525 6050 Ceramic Insert, Grade 6050, TiN - Sandvik Coromant 5725089
MFR# 5725089ISO/ANSI# CNGA 12 04 08T01525 6050Series T-Max P
$20.67List $26.51
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade6050
MaterialCeramic
CoatingTiN
Description
The Sandvik Coromant 5725089 is a CNGA 12 04 08T01525 6050 ceramic indexable insert, grade 6050, TiN coated. Suited for hard material.
Specifications
Chip breakerA
Clearance codeN
Coating finishTiN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCeramic
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA 12 04 08T01525 6050
Length range0.4000 - 0.5000
Manufacturer grade6050
Number of cutting edges4
Primary workpiece materialHard Material
Relief angle0
Tolerance codeG
Wiper edgeNo
