Sandvik Coromant

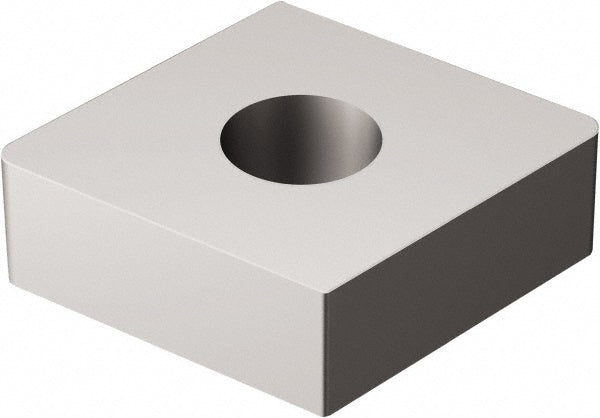

CNGA120408T01020WG 6190 Ceramic Insert, Grade 6190 - Sandvik Coromant 5725136
MFR# 5725136ISO/ANSI# CNGA120408T01020WG 6190
$35.88List $46.01
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade6190
MaterialCeramic
Description
The Sandvik Coromant 5725136 is a CNGA120408T01020WG 6190 ceramic indexable insert, grade 6190.
Specifications
Chip breakerA
Clearance codeN
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCeramic
Insert shapeDiamond
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408T01020WG 6190
Length range0.4000 - 0.5000
Manufacturer grade6190
Relief angle0
Tolerance codeG
