Sandvik Coromant

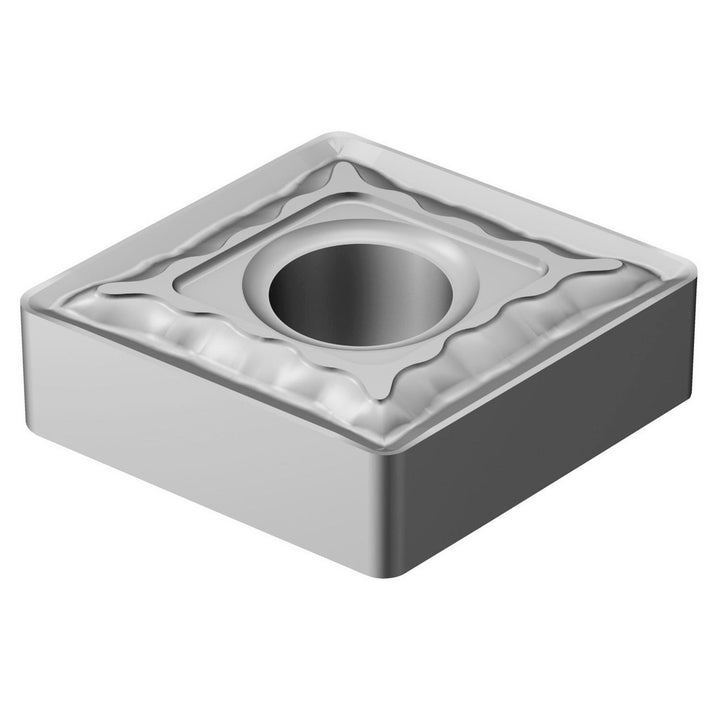

CNMG 16 06 12-QM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5725166
MFR# 5725166ISO/ANSI# CNMG 16 06 12-QM H13ASeries T-Max P
$22.44List $28.78
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5725166 is a CNMG 16 06 12-QM H13A carbide indexable insert, grade H13A. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Corner radius in3/64
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5874
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 12-QM H13A
Length range0.5000 - 0.6000
Manufacturer gradeH13A
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
