Sandvik Coromant
CNMG160612WMX2015 Carbide Insert, Grade 2015, TiCN - Sandvik Coromant 5725221
MFR# 5725221ISO/ANSI# CNMG160612WMX2015Series T-Max P
$33.93List $43.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade2015
MaterialCarbide
CoatingTiCN
Description

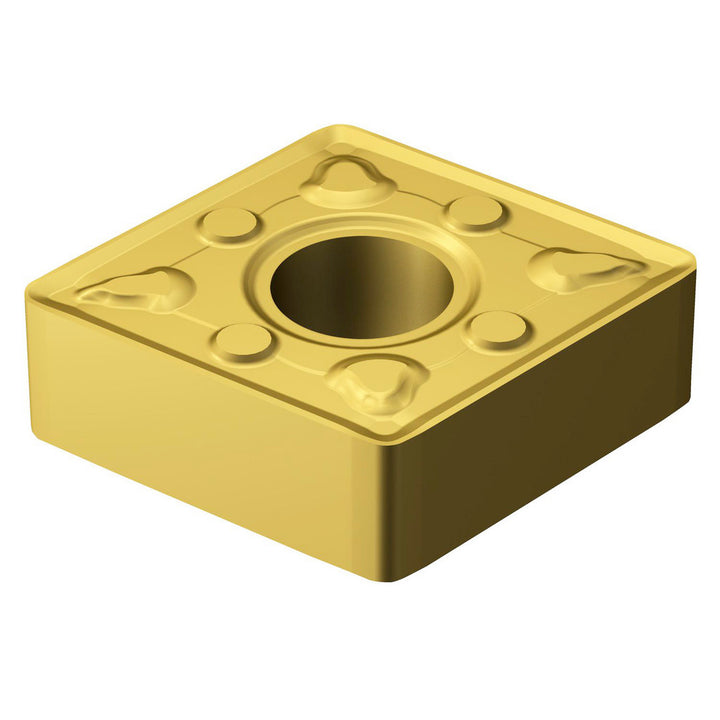

The Sandvik Coromant 5725221 is a CNMG160612WMX2015 carbide indexable insert, grade 2015, TiCN coated. Suited for stainless steel.
Specifications
Chip breakerWMX
Clearance codeN
Coating finishTiCN
Coating processMTCVD
Corner radius in3/64
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond
Insert size code543
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160612WMX2015
Length range0.6000 - 0.6500
Manufacturers catalog number5725221
Manufacturer grade2015
Maximum depth of cut0.5874
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeYes
