Sandvik Coromant

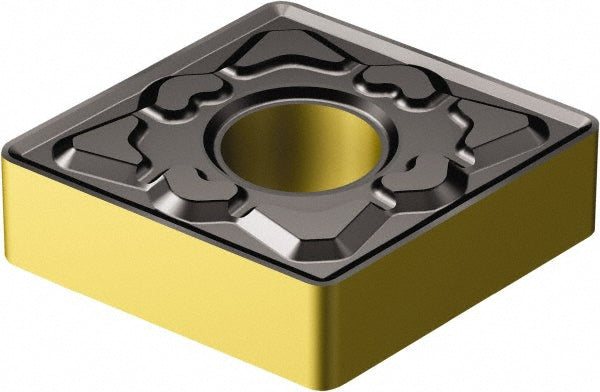

CNMG 16 06 08-KM 3210 Carbide Insert, Grade 3210, TiCN - Sandvik Coromant 5725272
MFR# 5725272ISO/ANSI# CNMG 16 06 08-KM 3210Series T-Max P
$30.49List $39.10
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
Grade3210
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5725272 is a CNMG 16 06 08-KM 3210 carbide indexable insert, grade 3210, TiCN coated. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Hole diameter0.2500
Included angle80
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6032
Insert materialCarbide
Insert shapeDiamond
Insert size code542
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 16 06 08-KM 3210
Length range0.6000 - 0.6500
Manufacturer grade3210
Number of cutting edges4
Primary workpiece materialCast Iron
Relief angle0
Tolerance codeM
Wiper edgeNo
