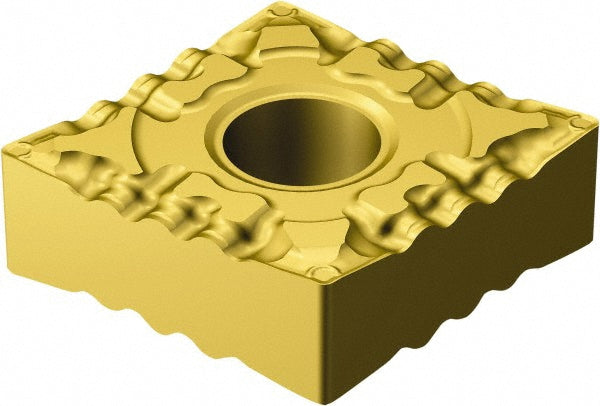

CNMG 12 04 08-PF 1525 Carbide Insert, Grade 1525, TiCN - Sandvik Coromant 5725294
MFR# 5725294ISO/ANSI# CNMG 12 04 08-PF 1525Series T-Max P
$17.77List $22.79
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1525
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5725294 is a CNMG 12 04 08-PF 1525 carbide indexable insert, grade 1525, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeN
Coating finishTiCN
Coating processPVD
Corner radius in1/32
Hole diameter0.2030
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.4762
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCNMG
Insert thickness in3/16
Iso codeCNMG 12 04 08-PF 1525
Length range0.4000 - 0.5000
Manufacturer grade1525
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel; Cast Iron
Tolerance codeM
Wiper edgeNo
