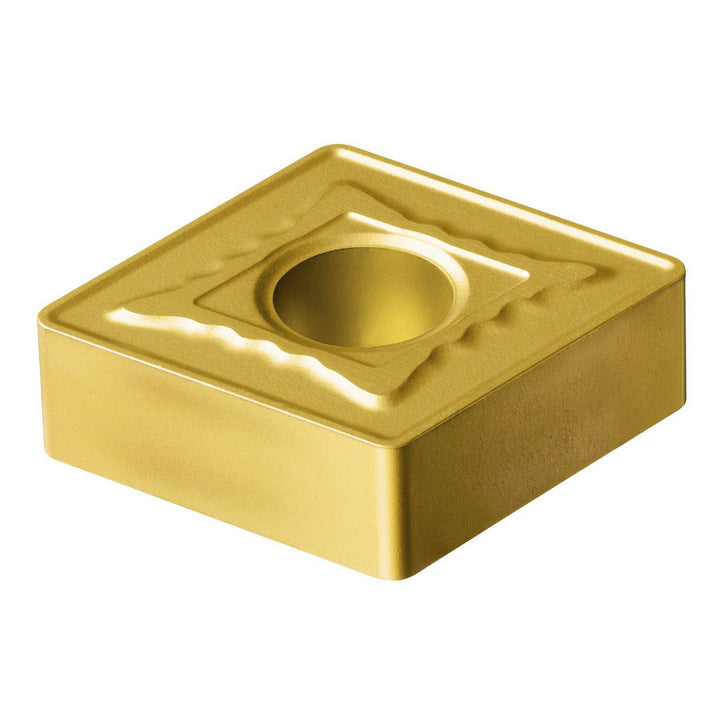

CNMG190608MR235 Carbide Insert, Grade 235, TiCN - Sandvik Coromant 5725418
MFR# 5725418ISO/ANSI# CNMG190608Series T-Max P
$39.02List $50.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeC - Diamond (Rhombic) 80-Deg
Grade235
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5725418 is a CNMG190608MR235 carbide indexable insert, grade 235, TiCN coated. Suited for steel.
Specifications
Ansi insert codeCNMG642
Ansi size code642
Chip breakerMR
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiCN
Coating processCVD
Corner radius in1/32
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness to High Toughness; Stainless Steel (M) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.3122
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7614
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code642
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190608MR235
Iso insert codeCNMG190608
Iso size code190608
Length range0.7000 - 10.0000
Manufacturers catalog number5725418
Manufacturer grade235
Maximum depth of cut0.7299
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialStainless Steel
Side clearanceNegative
Tolerance codeM
Wiper edgeNo
