Sandvik Coromant

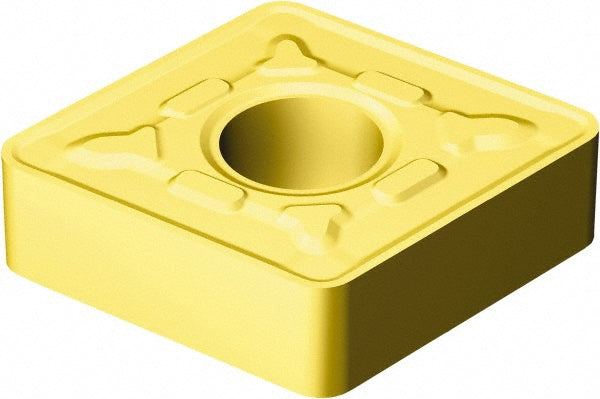

CNMG 19 06 16-MR 2035 Carbide Insert, Grade 2035, TiAlN - Sandvik Coromant 5725486
MFR# 5725486ISO/ANSI# CNMG 19 06 16-MR 2035Series T-Max P
$40.17List $51.52
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade2035
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5725486 is a CNMG 19 06 16-MR 2035 carbide indexable insert, grade 2035, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerMR
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/16
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6986
Insert materialCarbide
Insert shapeDiamond
Insert size code644
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 16-MR 2035
Length range0.6500 - 0.7000
Manufacturer grade2035
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Tolerance codeM
Wiper edgeNo
