Sandvik Coromant
CNMG 19 06 12-QM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5725557
MFR# 5725557ISO/ANSI# CNMG 19 06 12-QM 1105Series T-Max P
$43.12List $55.30
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description

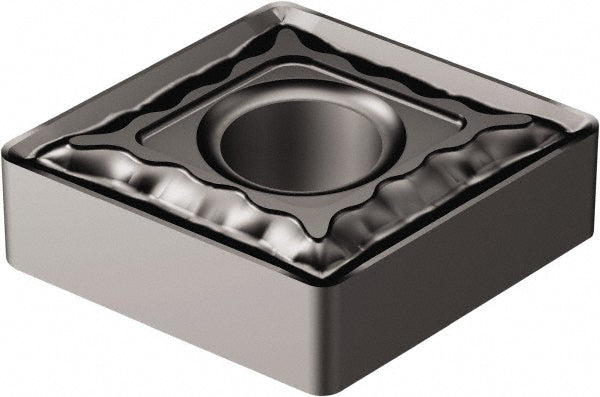

The Sandvik Coromant 5725557 is a CNMG 19 06 12-QM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerQM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in3/64
Hole diameter0.3120
Included angle80
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7143
Insert materialCarbide
Insert shapeDiamond
Insert size code643
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG 19 06 12-QM 1105
Length range0.7000 - 10.0000
Manufacturer grade1105
Number of cutting edges4
Primary workpiece materialSteel
Relief angle0
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
