Sandvik Coromant

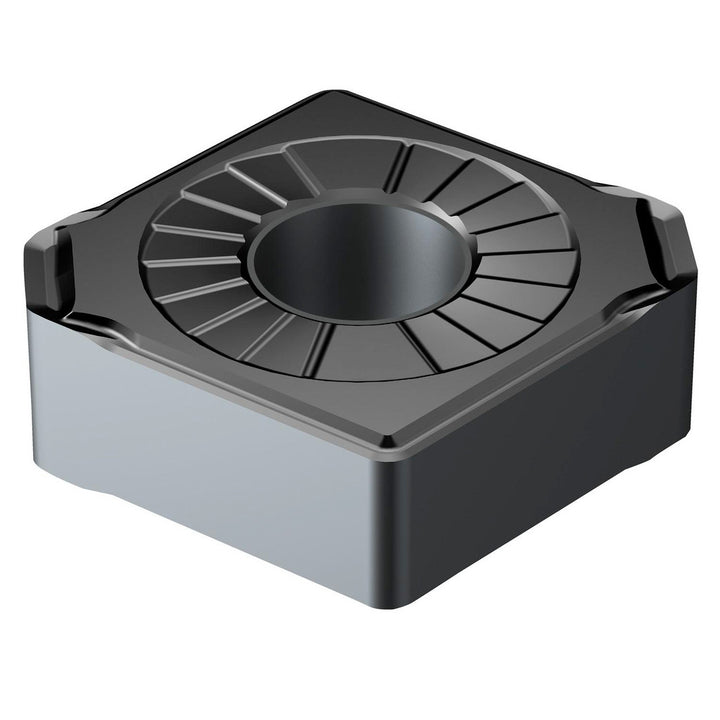

CNMX 12 04 A2-SM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5725909
MFR# 5725909ISO/ANSI# CNMX 12 04 A2-SM 1105Cat# CNMX1204A2SM1105Series T-Max P
$22.52List $28.89
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5725909 is a CNMX 12 04 A2-SM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for stainless steel.
Specifications
Chip breakerSM
Clearance codeN
Coating finishTiAlN
Coating processPVD
Corner radius in1/32
Full radiusYes
Hole diameter0.1875
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.1496
Insert materialCarbide
Insert shapeDiamond
Insert size code43
Insert styleCNMX
Insert thickness in3/16
Iso codeCNMX 12 04 A2-SM 1105
Length range0.0000 - 0.3000
Manufacturers catalog numberCNMX1204A2SM1105
Manufacturer grade1105
Maximum depth of cut0.1496
Multi use applicationTurning
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel
Relief angle0
Secondary workpiece materialSuperalloy; Titanium
Tolerance codeM
Wiper edgeNo
