Sandvik Coromant

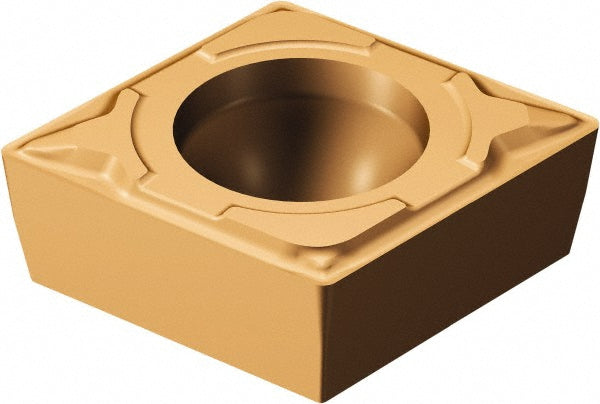

CPMT 06 02 02-MF 1125 Carbide Insert, Grade 1125, TiAlN - Sandvik Coromant 5725911
MFR# 5725911ISO/ANSI# CPMT 06 02 02-MF 1125Series CoroTurn 111
$17.14List $21.98
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1125
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5725911 is a CPMT 06 02 02-MF 1125 carbide indexable insert, grade 1125, TiAlN coated. Suited for steel.
Specifications
Chip breakerMF
Clearance codeP
Coating finishTiAlN
Coating processPVD
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2460
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT 06 02 02-MF 1125
Length range0.0000 - 0.3000
Manufacturer grade1125
Number of cutting edges2
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeM
Wiper edgeNo
