Sandvik Coromant

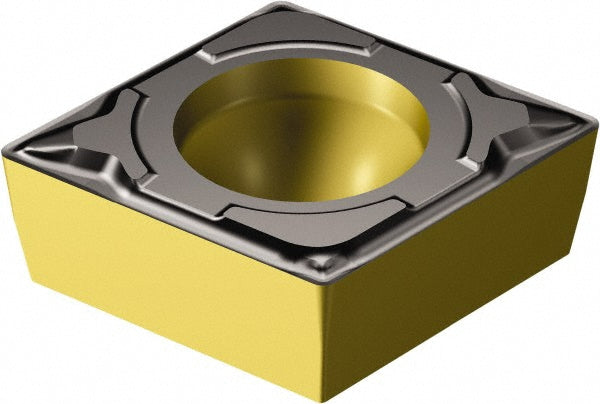

CPMT 06 02 02-PF 1515 Carbide Insert, Grade 1515, TiCN - Sandvik Coromant 5725913
MFR# 5725913ISO/ANSI# CPMT 06 02 02-PF 1515Series CoroTurn 111
$20.91List $26.35
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
Grade1515
MaterialCarbide
CoatingTiCN
Description
The Sandvik Coromant 5725913 is a CPMT 06 02 02-PF 1515 carbide indexable insert, grade 1515, TiCN coated. Suited for steel.
Specifications
Chip breakerPF
Clearance codeP
Coating finishTiCN
Coating processCVD
Corner radius0.0079
Hole diameter0.1102
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2460
Insert materialCarbide
Insert shapeDiamond
Insert size code21.50
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT 06 02 02-PF 1515
Length range0.0000 - 0.3000
Manufacturer grade1515
Number of cutting edges2
Primary workpiece materialSteel
Relief angle11
Secondary workpiece materialStainless Steel
Tolerance codeM
Wiper edgeNo
