Sandvik Coromant

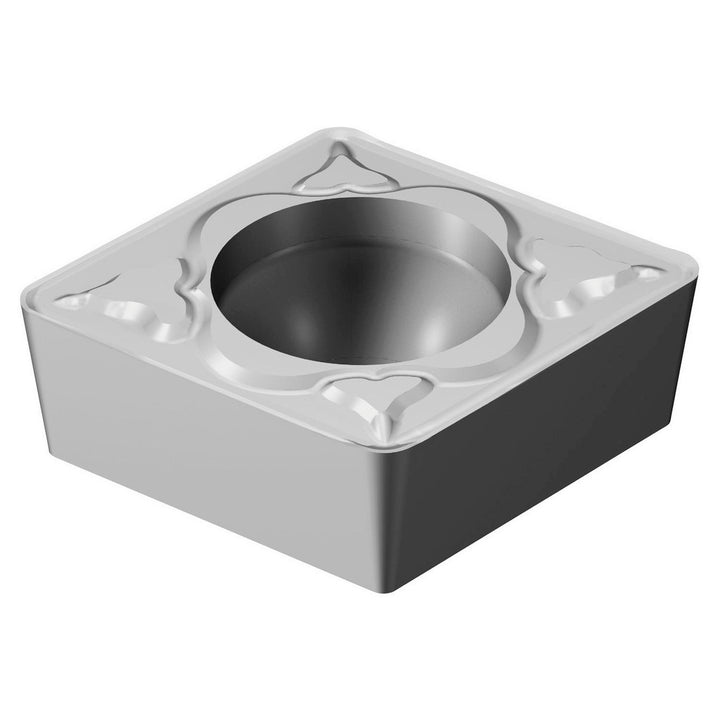

CPMT 06 02 04-KM H13A Carbide Insert, Grade H13A - Sandvik Coromant 5725925
MFR# 5725925ISO/ANSI# CPMT 06 02 04-KM H13ACat# CPMT 06 02 04-KM H13ASeries CoroTurn 111
$10.95List $14.04
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeH13A
MaterialCarbide
Description
The Sandvik Coromant 5725925 is a CPMT 06 02 04-KM H13A carbide indexable insert, grade H13A. Suited for cast iron.
Specifications
Chip breakerKM
Clearance codeP
Coating processUncoated
Corner radius in1/64
Full radiusYes
Hole diameter0.0937
Included angle80
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.2381
Insert materialCarbide
Insert shapeDiamond
Insert size code21.51
Insert styleCPMT
Insert thickness in3/32
Iso codeCPMT 06 02 04-KM H13A
Length range0.0000 - 0.3000
Manufacturers catalog numberCPMT 06 02 04-KM H13A
Manufacturer gradeH13A
Maximum depth of cut0.2381
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialCast Iron
Relief angle11
Secondary workpiece materialNon-Ferrous Metal
Tolerance codeM
Wiper edgeNo
