Sandvik Coromant

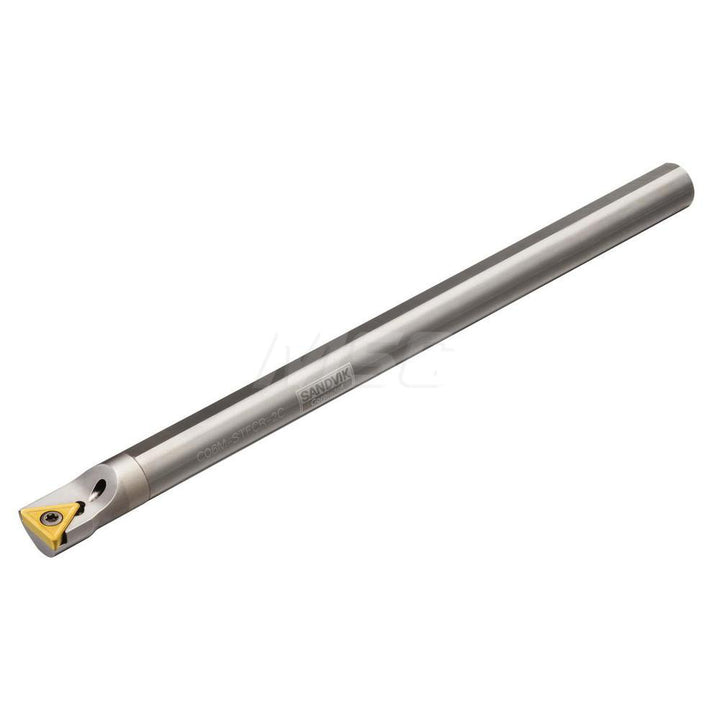

Indexable Boring - Sandvik Coromant 5726646
MFR# 5726646Cat# C08R-STFCR-2CSeries CoroTurn 107
$606.91List $644.76
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5726646 indexable boring. Series CoroTurn 107.
Specifications
Back of bar to cutting edge8.0000
Center to cutting edge0.3120
Coolant throughYes
Hand of holderRight Hand
Insert compatibilityTCMT 21.51
Insert holding methodScrew Clamping
Insert inscribed circle0.2250
Insert thickness in3/32
Lead angle0.00
Manufacturers catalog numberC08R-STFCR-2C
Minimum bore diameter0.6236
Minimum bore diameter using diamond insert cartridge0.6236
Minimum bore diameter using triangle insert cartridge0.6236
Multi use applicationBoring; Turning
Multi use toolYes
Neck diameter in1/2
Number of inserts used on toolholder1
Overall length in8
RakeNeutral
Rake angle0.00
Shank diameter in1/2
Toolholder styleC-STFC
Tool materialSolid Carbide
