Sandvik Coromant

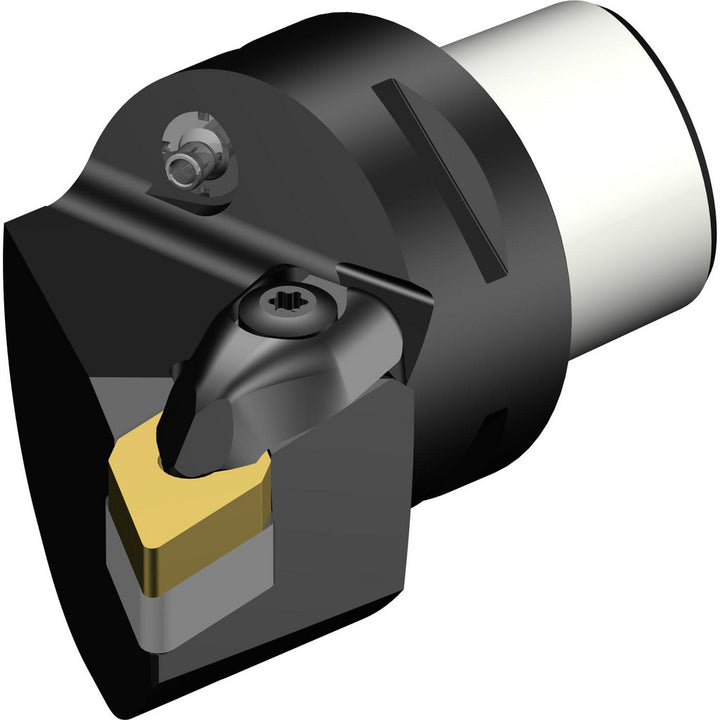

Indexable Turning & Profiling - Sandvik Coromant 5727516
MFR# 5727516Series T-Max P
$376.14List $399.60
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description
The Sandvik Coromant 5727516 indexable turning & profiling. Series T-Max P.
Specifications
Axial rake angle-6.00
Center to cutting edge1.0630
Compatible insert styleDNMG 150408
Complete insert compatibilityDNMG 150408
Coolant throughYes
Cutting directionRight Hand
Head connection sizeC4
Head length projection2.1654
Insert holding methodWedge
Internal or externalInternal
Maximum hole depth2.1654
Minimum hole diameter4.3307
Neck diameter1.5748
Radial rake angle degrees-7
System sizeC4
