Sandvik Coromant
Indexable Turning & Profiling - Sandvik Coromant 5729606
MFR# 5729606Series T-Max P
$480.85List $510.84
Save 5%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Description

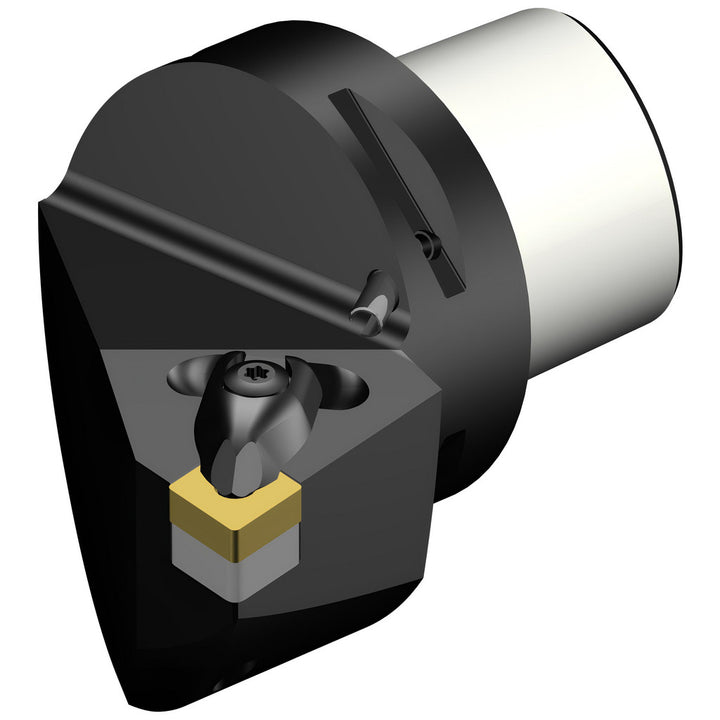

The Sandvik Coromant 5729606 indexable turning & profiling. Series T-Max P.
Specifications
Axial rake angle-6.00
Center to cutting edge1.7717
Compatible insert styleCNMG 120408
Complete insert compatibilityCNMG 120408
Coolant throughYes
Cutting directionRight Hand
Head connection size20
Head length projection2.5591
Insert holding methodWedge
Internal or externalInternal or External
Maximum hole depth2.5591
Minimum hole diameter4.3307
Neck diameter2.4803
Radial rake angle degrees-6
System sizeC6
