Sandvik Coromant

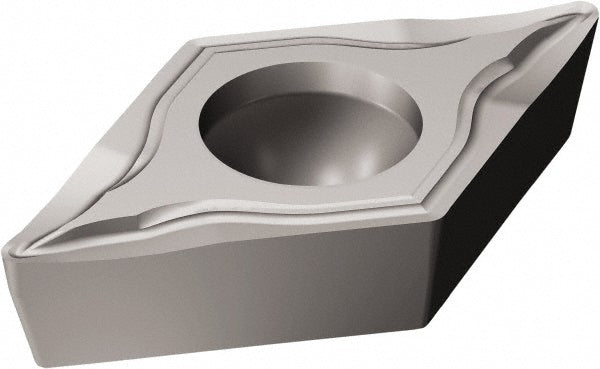

DCGT 11 T3 02-UM 5015 Cermet Insert, Grade 5015 - Sandvik Coromant 5730400
MFR# 5730400ISO/ANSI# DCGT 11 T3 02-UM 5015Cat# DCGT 11 T3 02-UM 5015Series CoroTurn 107
$32.59List $41.80
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade5015
MaterialCermet
Description
The Sandvik Coromant 5730400 is a DCGT 11 T3 02-UM 5015 cermet indexable insert, grade 5015. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating processUncoated
Corner radius0.0079
Full radiusYes
Hole diameter0.1563
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4499
Insert materialCermet
Insert shapeDiamond
Insert size code32.5
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11 T3 02-UM 5015
Length range0.4000 - 0.5000
Manufacturers catalog numberDCGT 11 T3 02-UM 5015
Manufacturer grade5015
Maximum depth of cut0.4499
Multi use applicationTurning
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialCast Iron
Tolerance codeG
Wiper edgeNo
