Sandvik Coromant

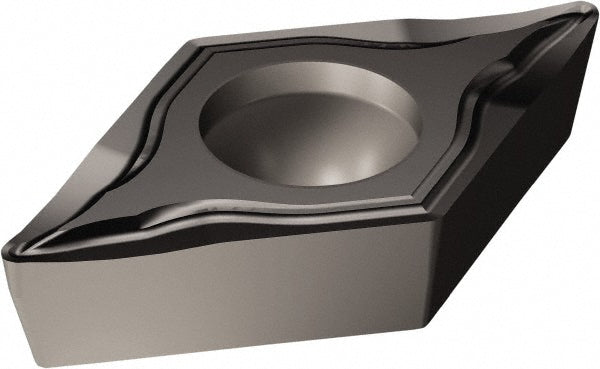

DCGT 11 T3 04-UM 1105 Carbide Insert, Grade 1105, TiAlN - Sandvik Coromant 5730408
MFR# 5730408ISO/ANSI# DCGT 11 T3 04-UM 1105Series CoroTurn 107
$40.47List $51.00
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
Grade1105
MaterialCarbide
CoatingTiAlN
Description
The Sandvik Coromant 5730408 is a DCGT 11 T3 04-UM 1105 carbide indexable insert, grade 1105, TiAlN coated. Suited for steel.
Specifications
Chip breakerUM
Clearance codeC
Coating finishTiAlN
Coating processPVD
Corner radius in1/64
Hole diameter0.1732
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.4420
Insert materialCarbide
Insert shapeDiamond
Insert size code32.51
Insert styleDCGT
Insert thickness in5/32
Iso codeDCGT 11 T3 04-UM 1105
Length range0.4000 - 0.5000
Manufacturer grade1105
Number of cutting edges2
Primary workpiece materialSteel
Relief angle7
Secondary workpiece materialSteel; Stainless Steel; Superalloy; Titanium
Tolerance codeG
Wiper edgeNo
